Restomod2000W202
unsold on ebay in 2014 so contacted the seller
Was M102 auto
Then M102 6speed turbo on kjet
Now M111 Turbo 6speed
Your car belongs in this registry. 375 of the 500 founding files are still open, numbered in order of intake.
Free, no card. Your own photos, your honest spec, reviewed before it goes live. City only, and your email is never shown.
Let's get this project rolling! Another one of our favourite m111 turbo builds with 6 speed manual. #m111 #turbo #build #190e #w201
Perfect trip to Prescott Hill Climb, no discount for me at the shop seeming as i own the place 😂 (long lost relative) Great to meet other 190E owners. MLS gasket and ARP studs next, lets get some proper boost 🤗 Not a show car but we show up Great driving by everyone too, hopefully be on the track in May, see what we can do Great job by #retrorides #190E #W201
New door cards thanks Mathew Taylor 👊 Varnished the inside to keep them nice Quickly whipped up some rough speaker pods Got to be brave and cut the new door cards sounds ace 🥳 just added the blanking cover for the window winder dont panic! Will try and cruise for 2hrs to Prescott Hill Climb tomorrow but probably not Not doing the climb because it looks like a hatchback course, i need to learn to drive Lets go #retroridesevents

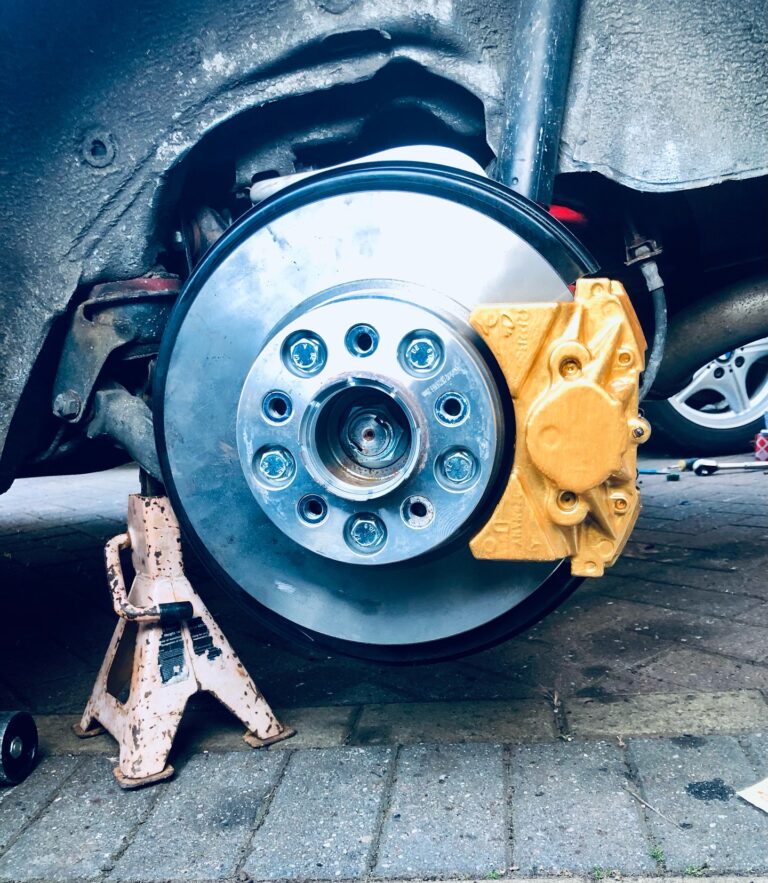

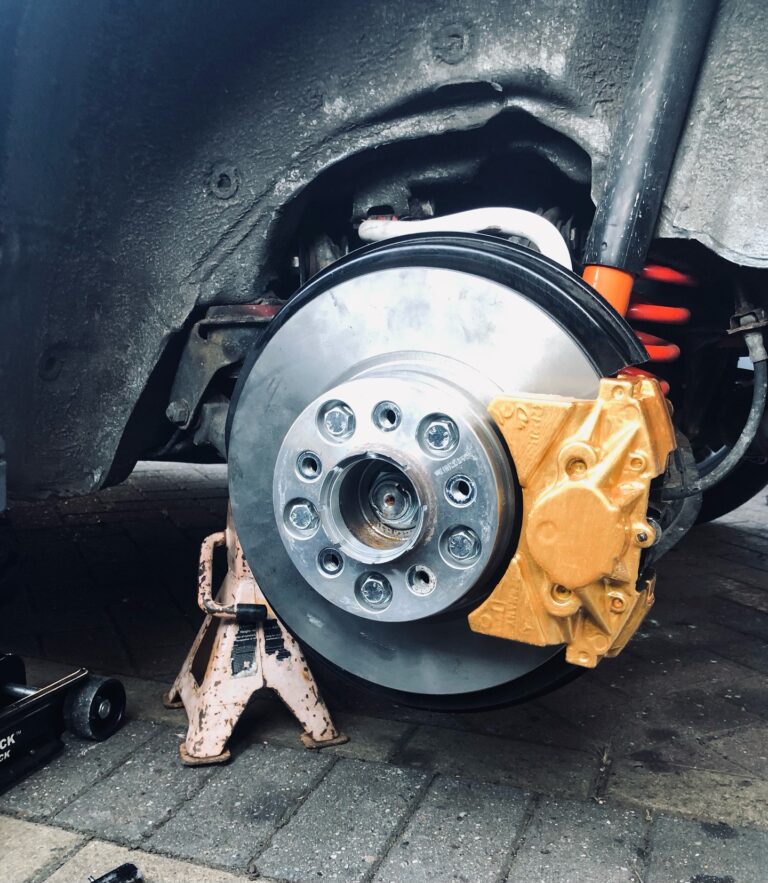

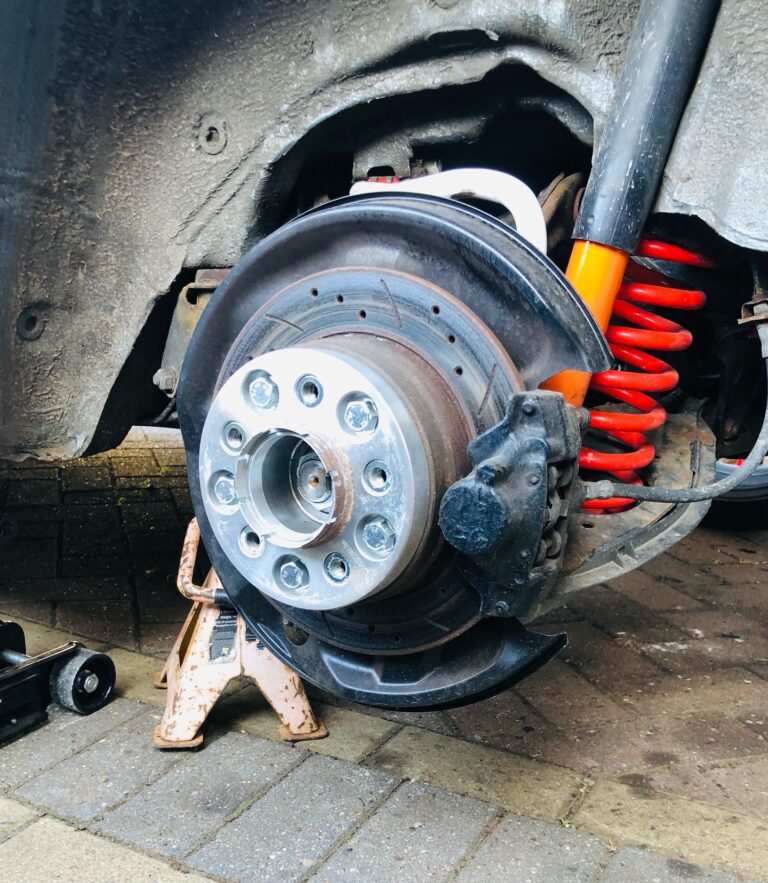

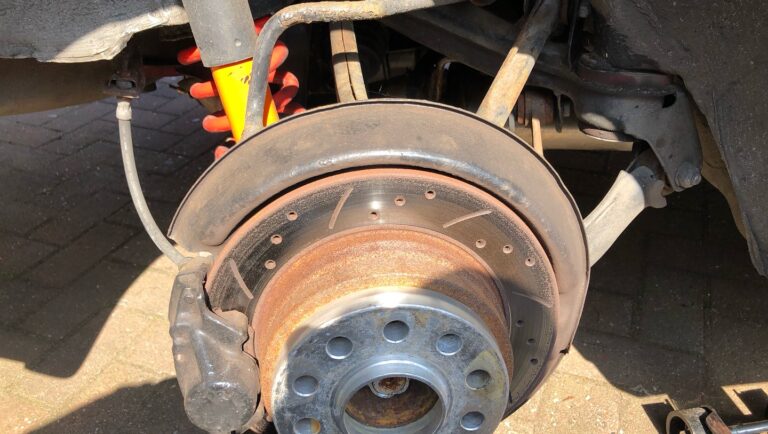

W215 300mm vented rear brakes finally on. M12 to M10 sleeve, thick spacer, larger shields, longer High tensile bolts. See what this brings!

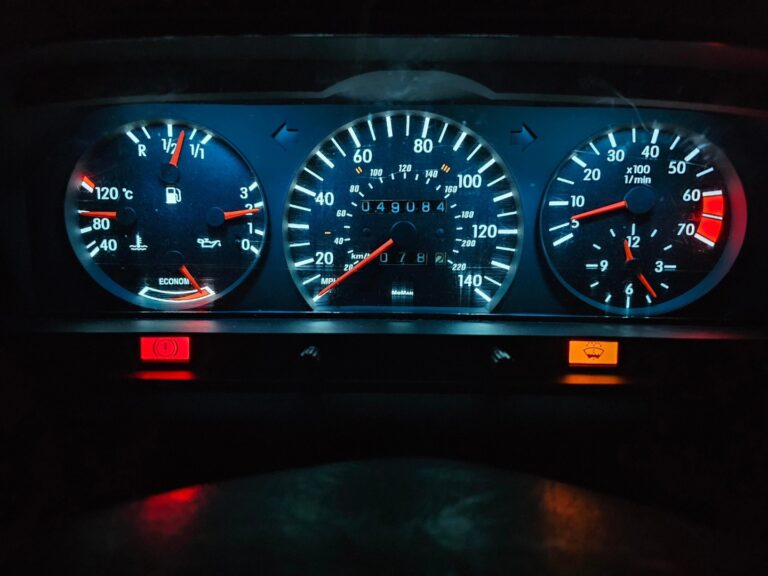

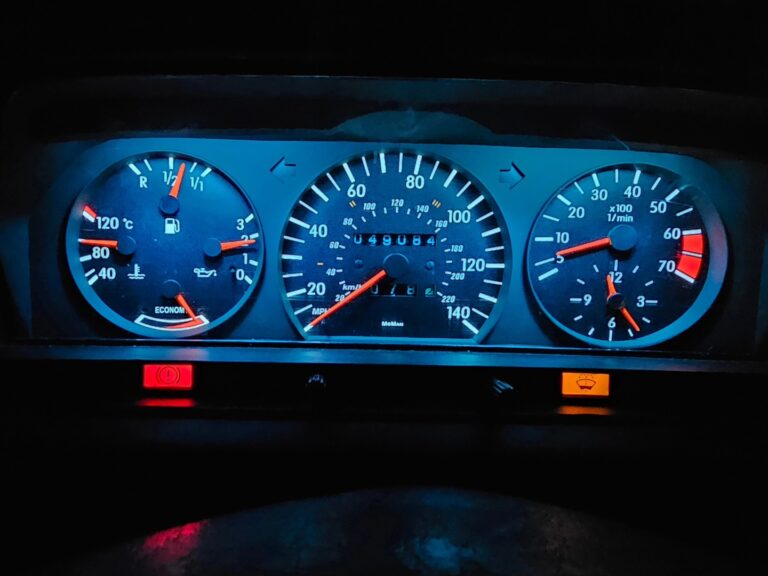

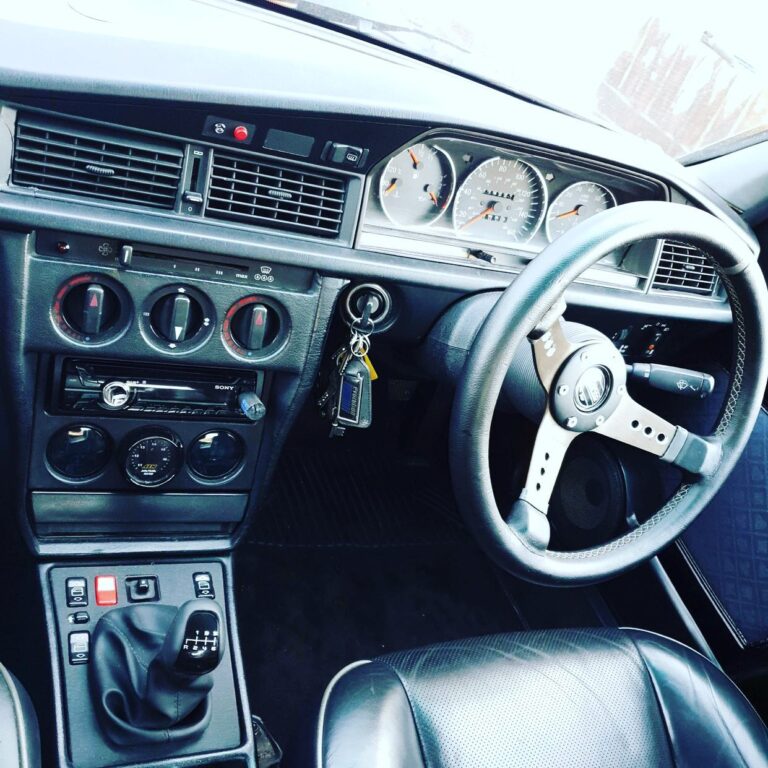

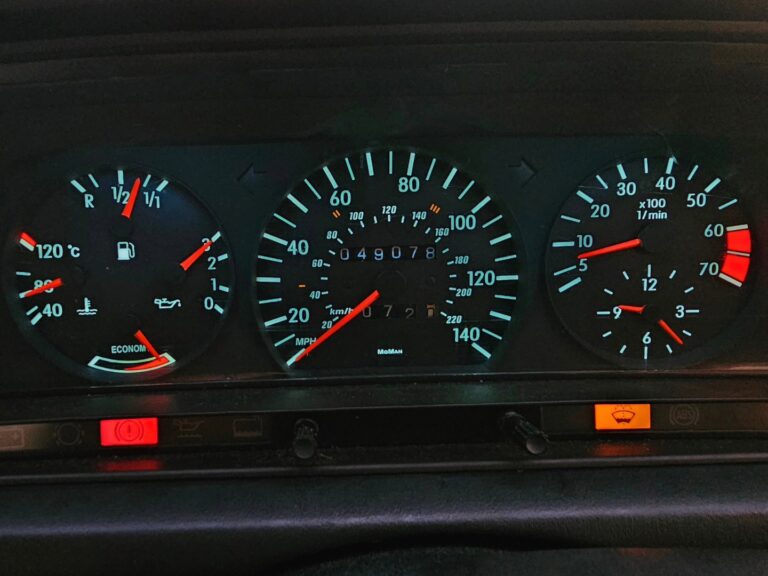

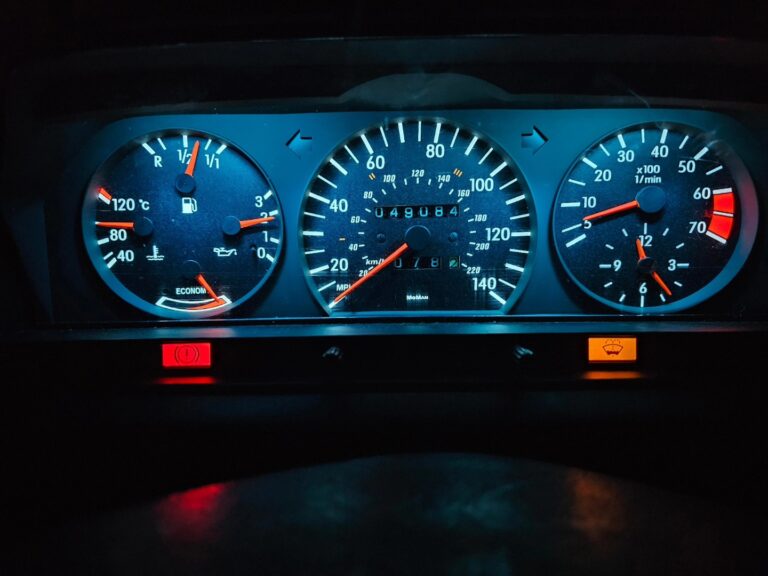

Different brightness tested. Huge improvement from original dim dials. #w201 ##190e #mercedesbenz #mercedes #babybenz #moman.eu
Thanks Andy for sorting out the needles in flourescent paint and installing the @moman.eu dials. Looks beautiful 😍 🤩. Cant wait for it to get dark so I can take the 190 for a spin.. need to top up some screen wash too.
1 day away 🍻 overtook everything to get there 😁 #190e #w201
Always good to get help from friends. Upgrade suspension to 40mm lowered H&R #w201 #190e #mercedesbenz

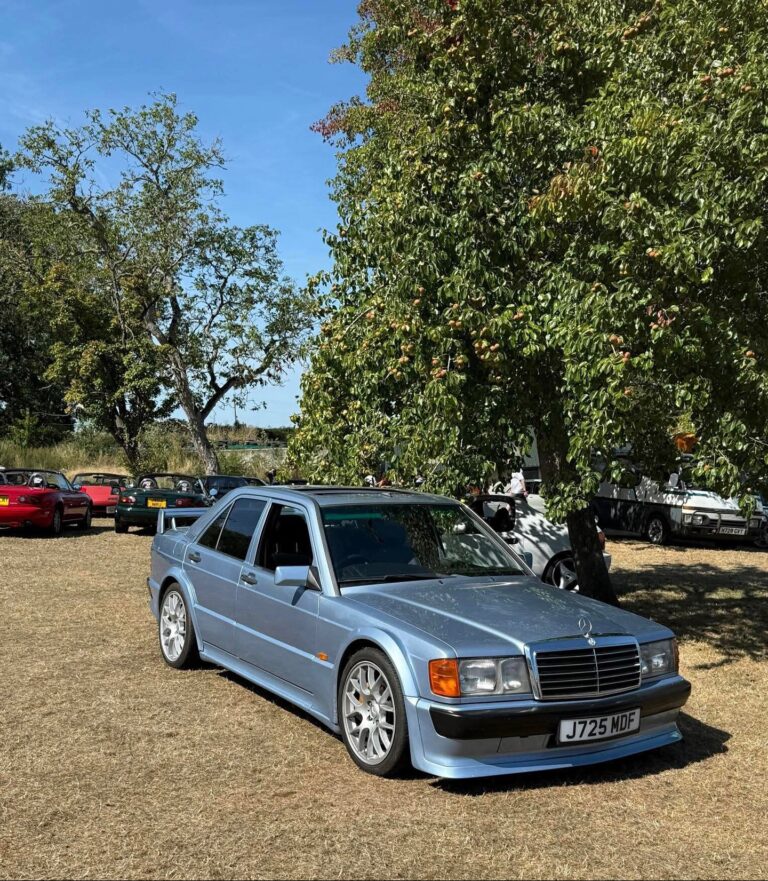

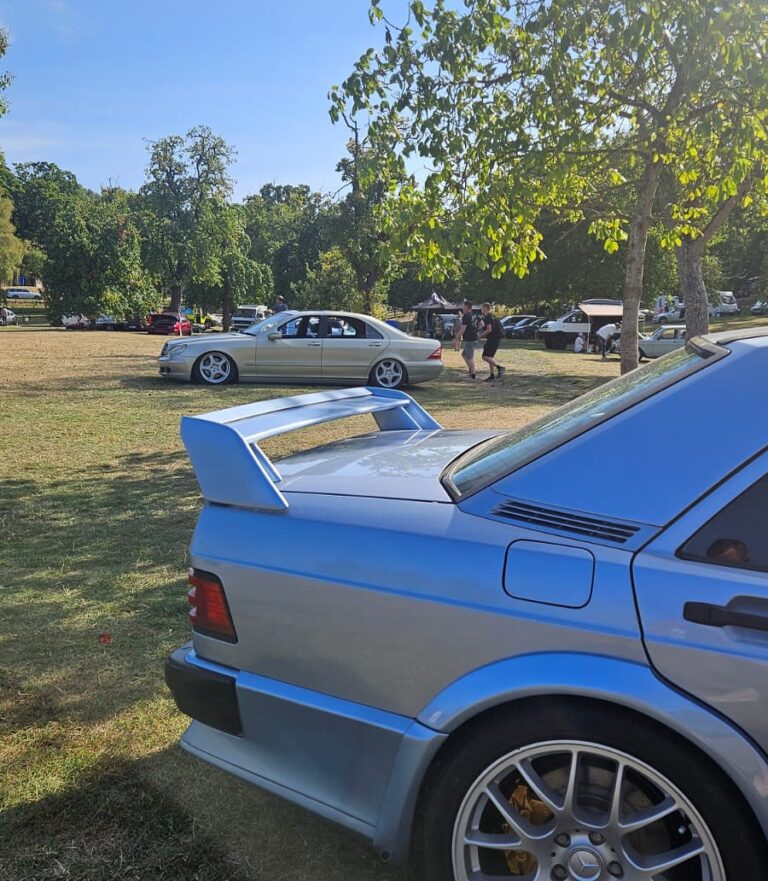

Last minute tickets to Retro Rides was ace, James managed to make the car shine so it went for a look inside Goodwood. Got to make the most of this summer 🌞 I have a feeling next year will have more mercs representing 🥳 #w201 #190E #retrorides
Changed the diff to 3.07 didnt really notice a difference from 3.27 but trialled BMW driveshafts and hubs and added the 19mm ARB and steel droplinks. Nicer ride all working well. Went to RetroRides ✅🍾. Rear vented discs next

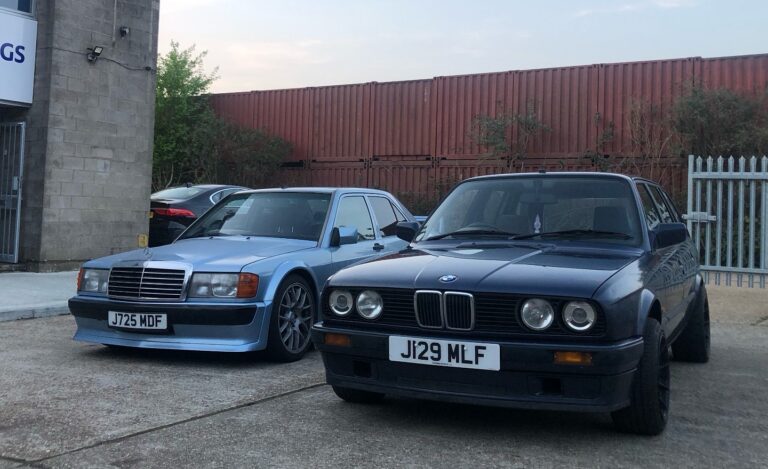

Must be a personalised number plate on the E30 😝 #e30 #190e #w201
#190e #w201 #highcliffecastle
#190e #w201
Turbo, 6speed, Music, love the going to work bit😏

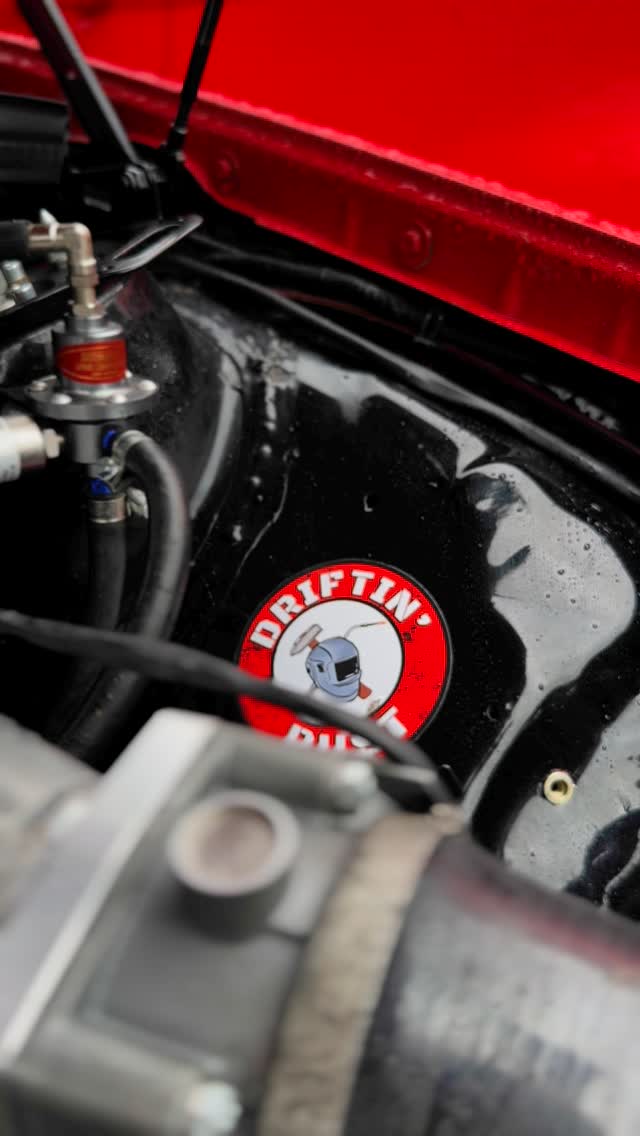

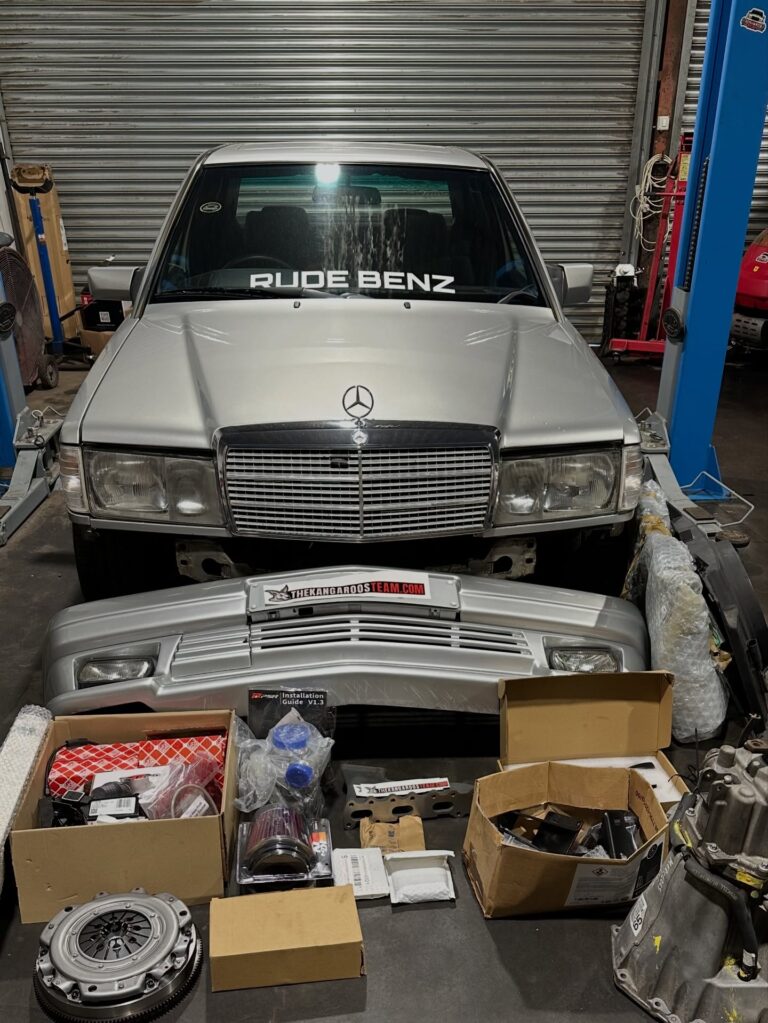

The Red Flag stopped by for 6 speed gearbox upgrade! Our friends from @pulsemotorsportltd will the tuning it soon!😁🔥 Exhaust manifold and clutch kit: @kangaroos_team 6 speed swap kit: @190tevolution Fab and wiring: @driftin_rust Support guys: @rampgarage
6speed retro install W201 M111 and others #w201 #190e James fitted a 6speed conversion over Christmas to his M111 Turbo 5speed was as easy as it should be 😁 some images from the Install here mixed in. Hes back on the bodykit now. Ah yeah and speedo will probably be digital dash i understand. https://www.modifiedmercs.co.uk/shop-1 for parts 😎
ASD working well, shifter working well, tyres not working well 😂 going wider need that grip. January testing 😁 #m111turbo #190E #w201
#190e #evo1 #projectcar

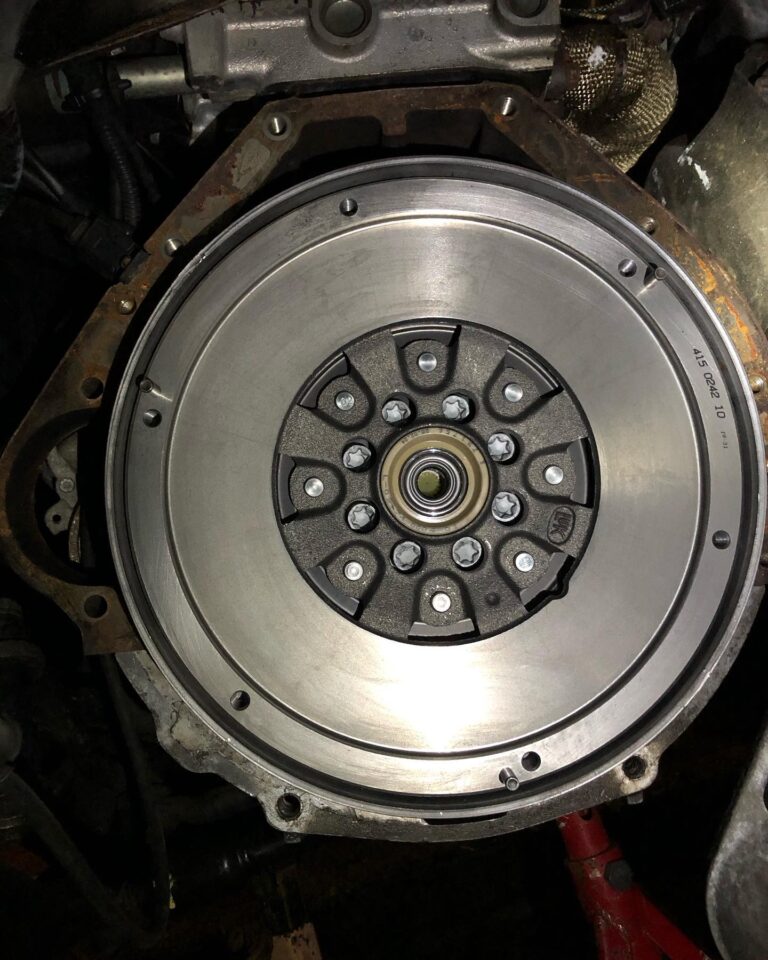

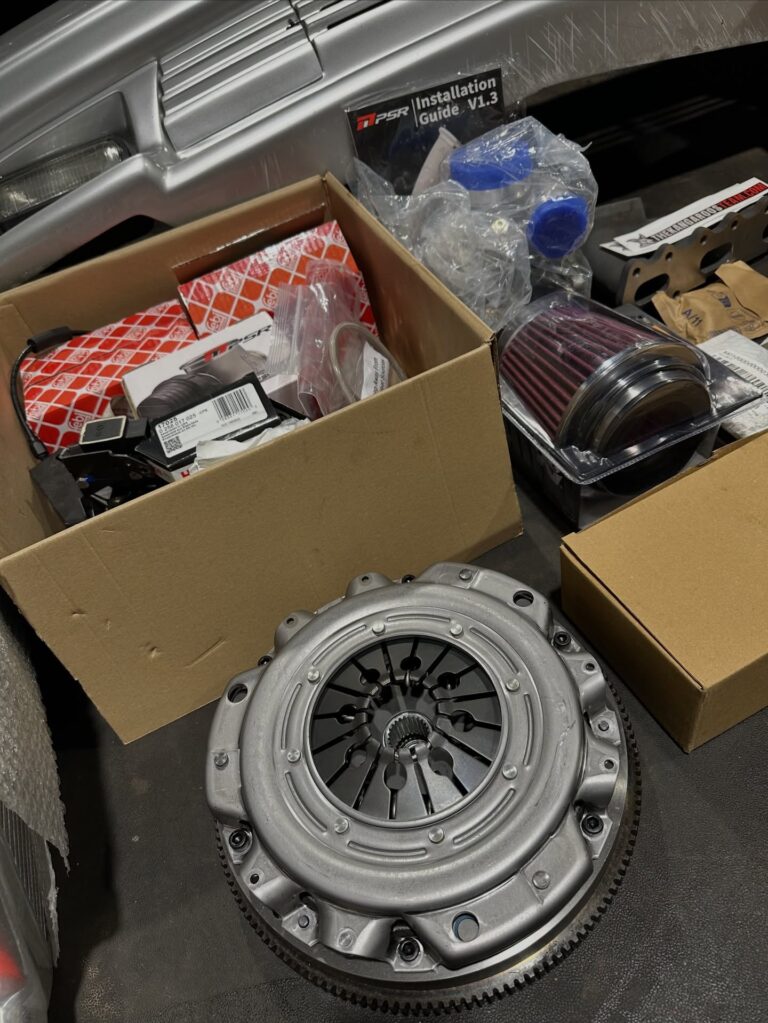

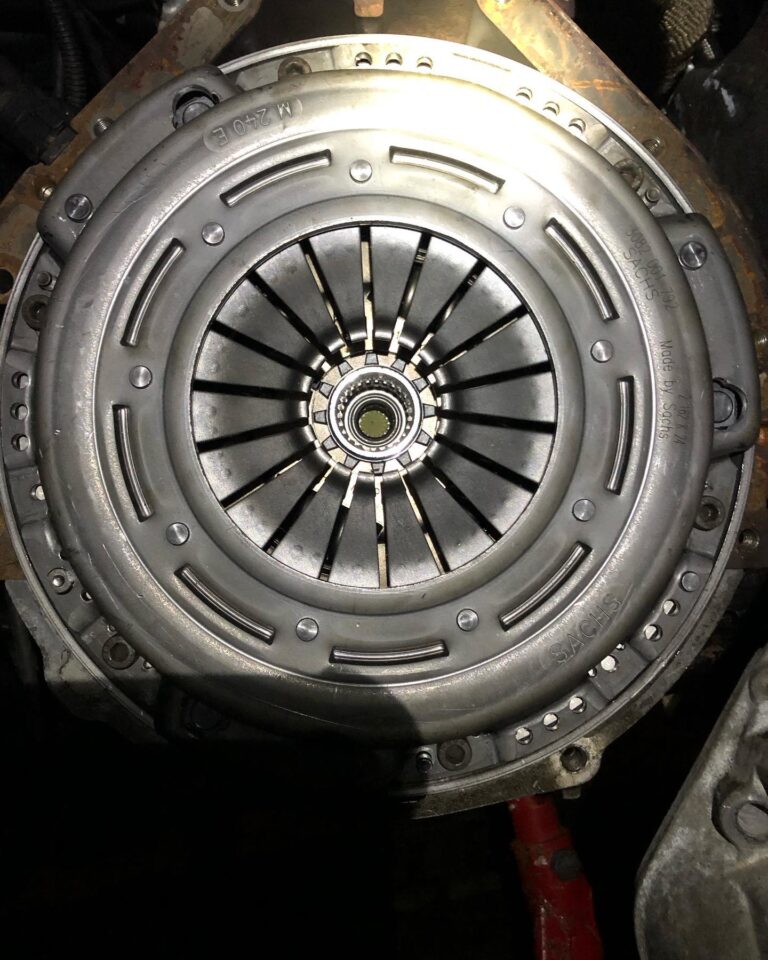

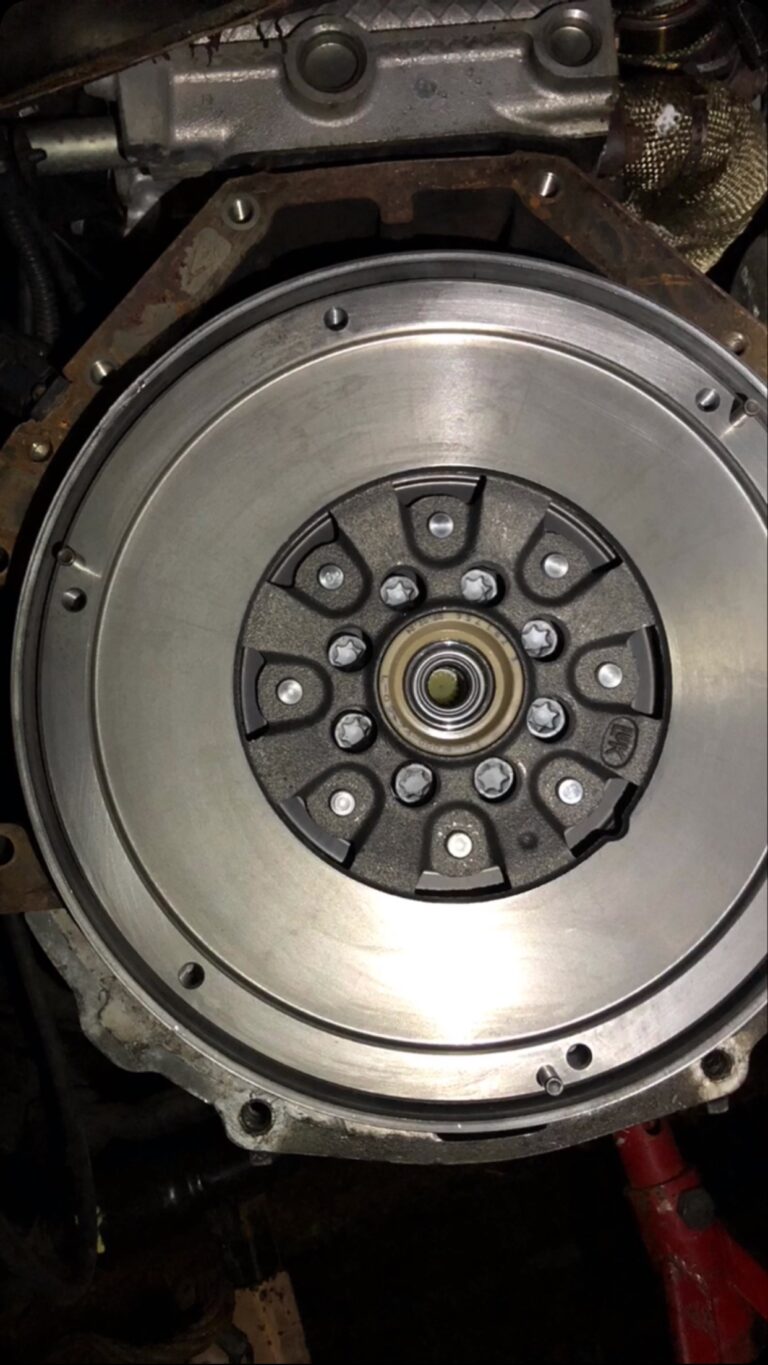

Upgraded to the bigger 240mm clutch kit 3000970079 for our 8mm deep standard flywheels. Pressure plate looks stronger than the old one And the a6460300805 (LUK 415024210) Vito van 115cdi flywheel Works with standalone ecu 5speed if modified to remove centre bearing and open out and 6speed as standard with 108deg ref angle Should hold the power 😄. My old flywheel was ok but i noticed the standard one was a crazy price and hard to get so had to experiment so you guys dont have to! Thanks GSF parts for their help and price, £320 DMF. This information will help give you SMF options too. #M111 #190E #W201 #6speed
Bruhhhh 🤑🤑😍

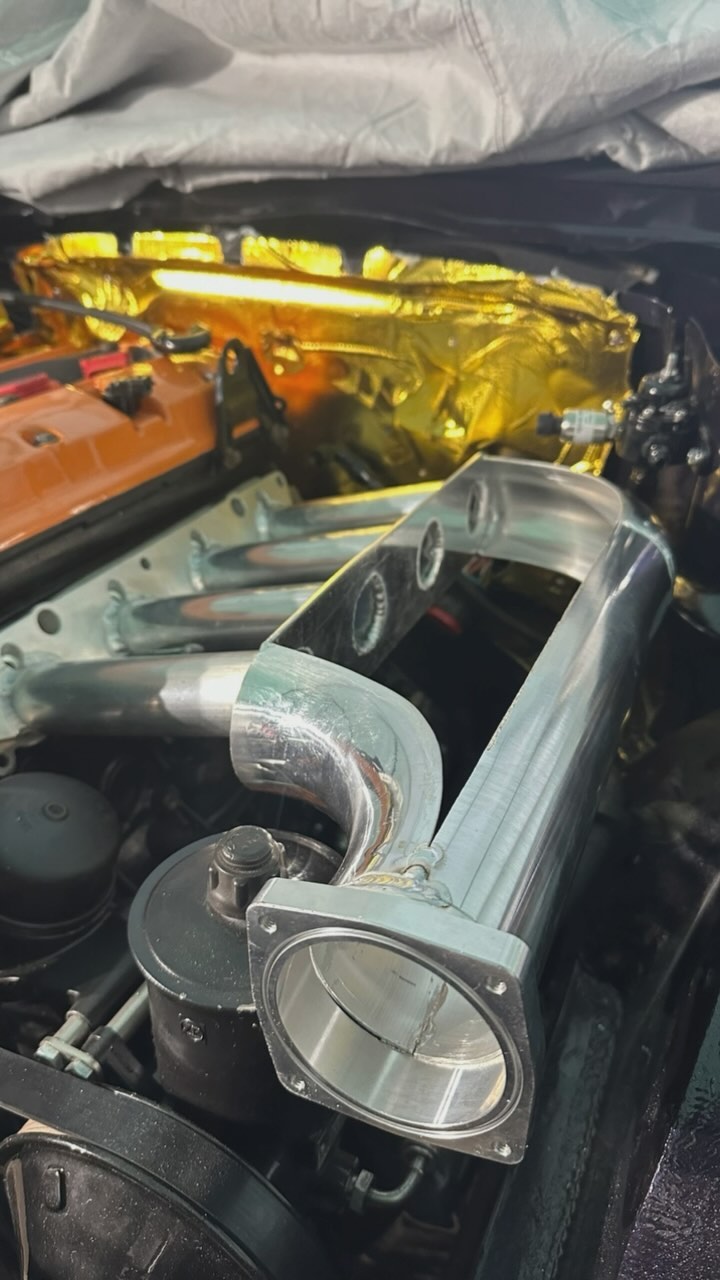

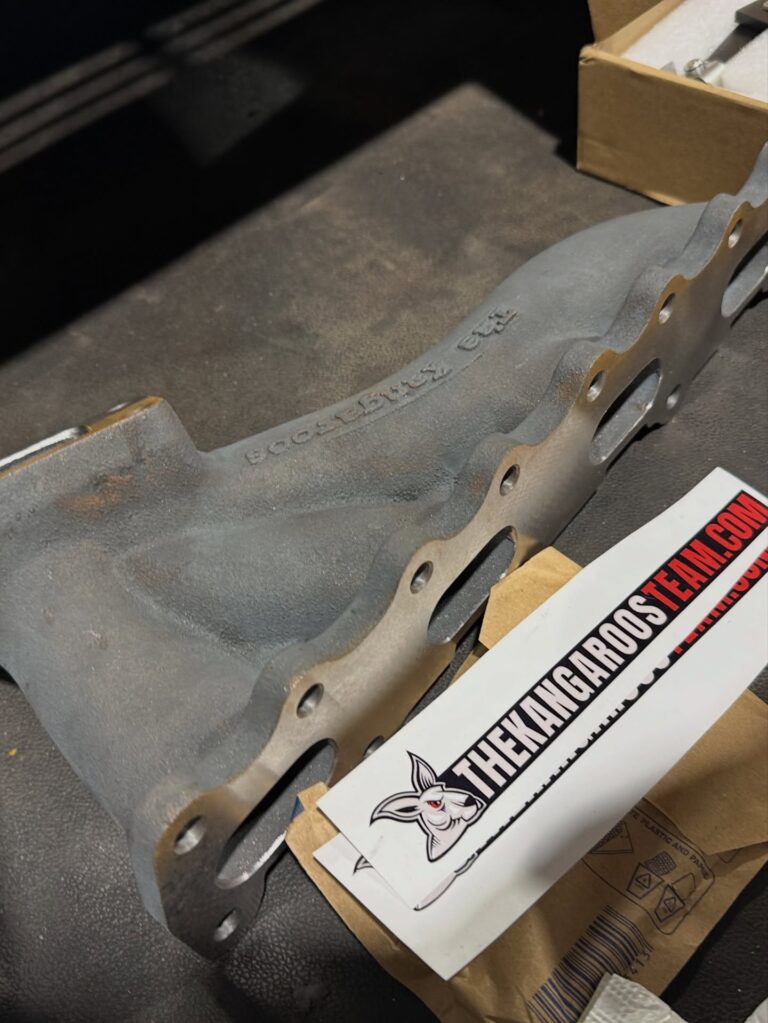

M111 Turbo Manifold made for @190e_turbo_evo3
#190e

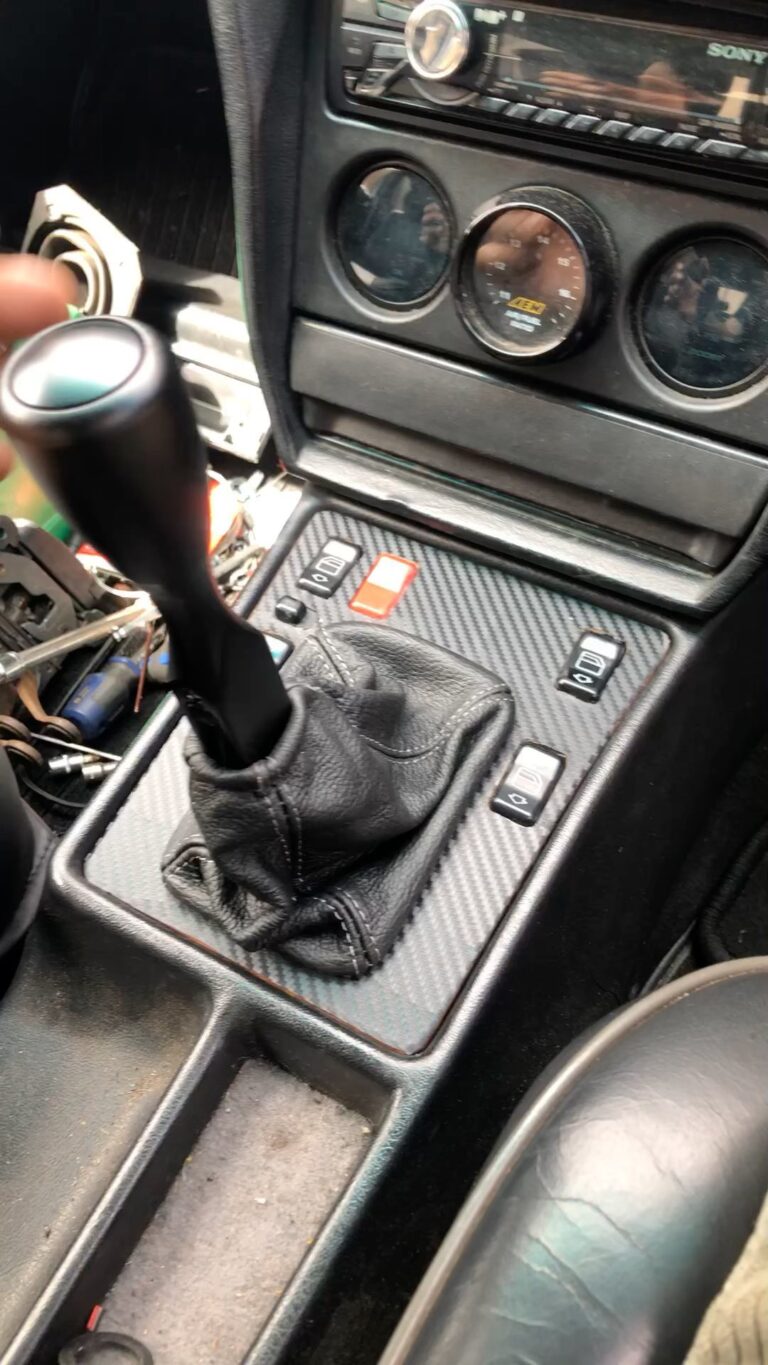

This is the IRP style shifter with shortened lower section to clear the propshaft The adaptor works with this and you can have the wingmirror button Or Coolerworx shifter out of the box as this shifter has 3 pivot positions, you just set it to the highest but need to remove the wingmirror button due to the cable configuration. Shifting is nice, the kit will be developed in the next week and gearbox mounts are at paint too Available on the Modified Mercs page shortly at a great price as always 🤩 #190e #W201 #6speed

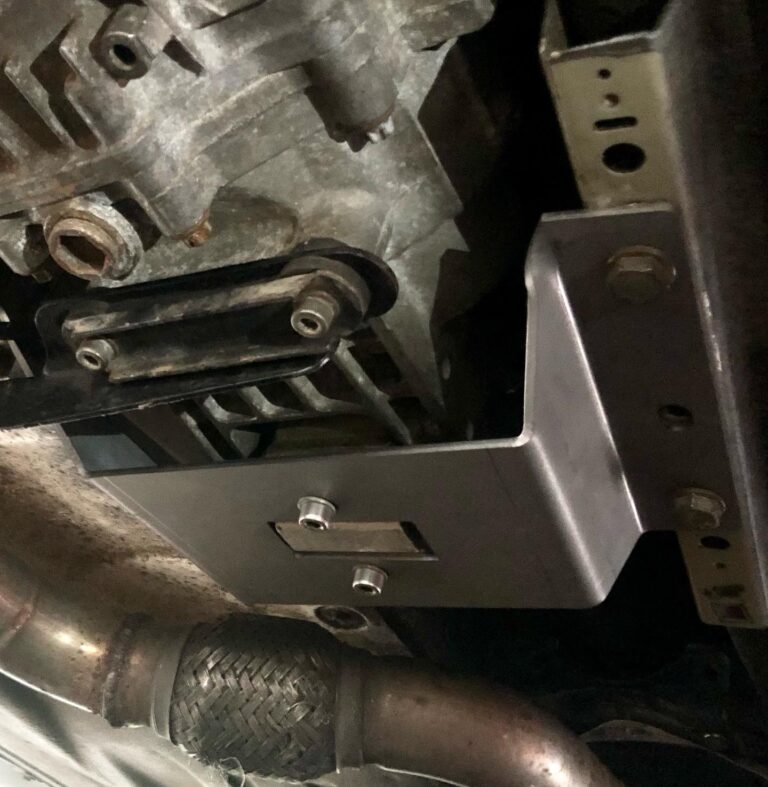

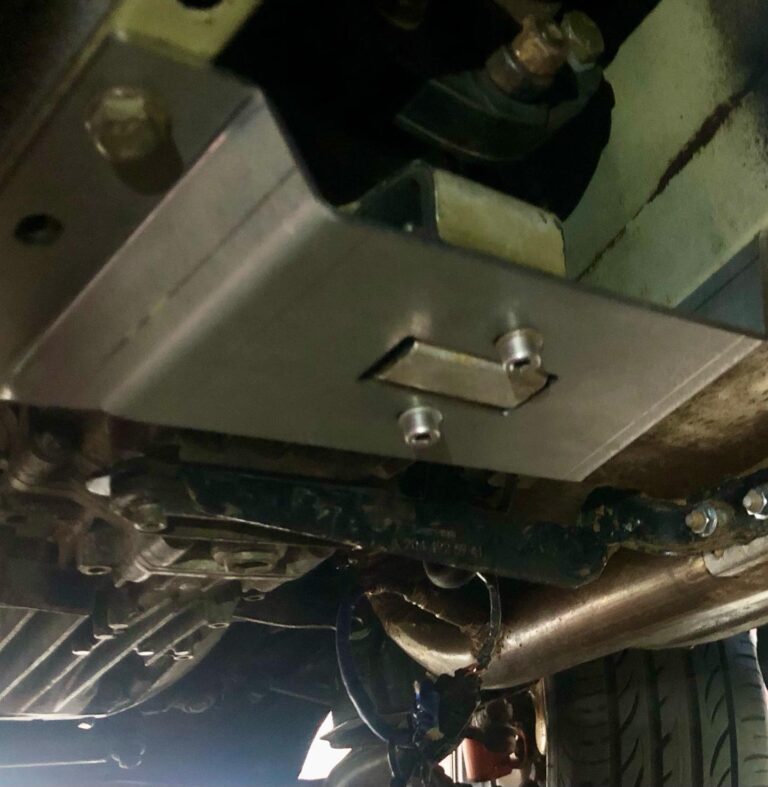

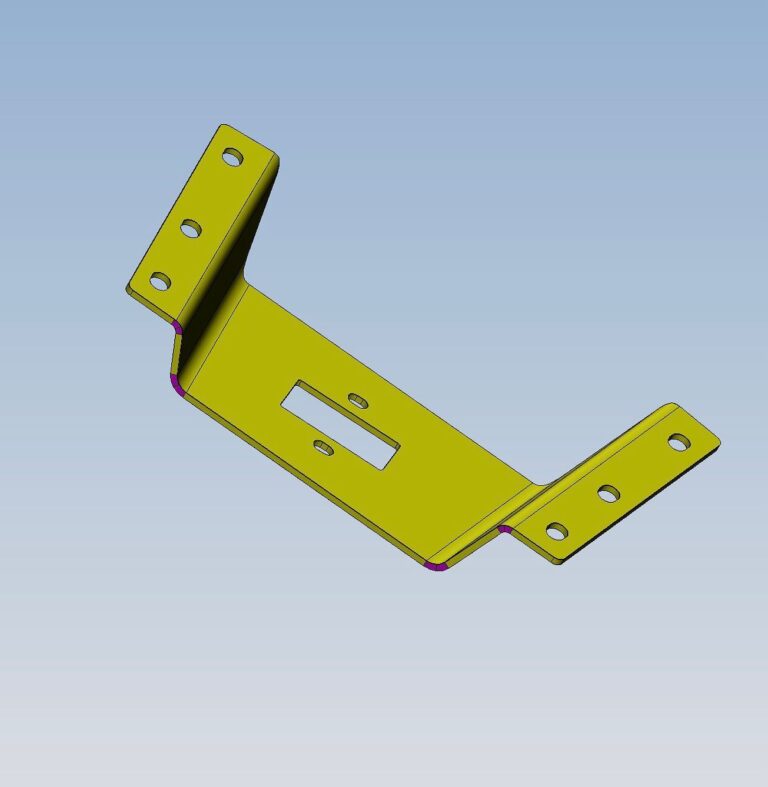

6speed gearbox mount sample looks ace 🥳 Lets start with a batch of 15 #190E #W201 #6speed
Blew the old engine, new engine from Louis is running nice. Not 100% sure why cylinder3 piston melted as was 0 boost but lesson learnt running rich and tuning it back rather than hoping 🙈. Good to be back, still a few things to do. Rear wheels need a refurb but are 9J now 😁 #190E #M111

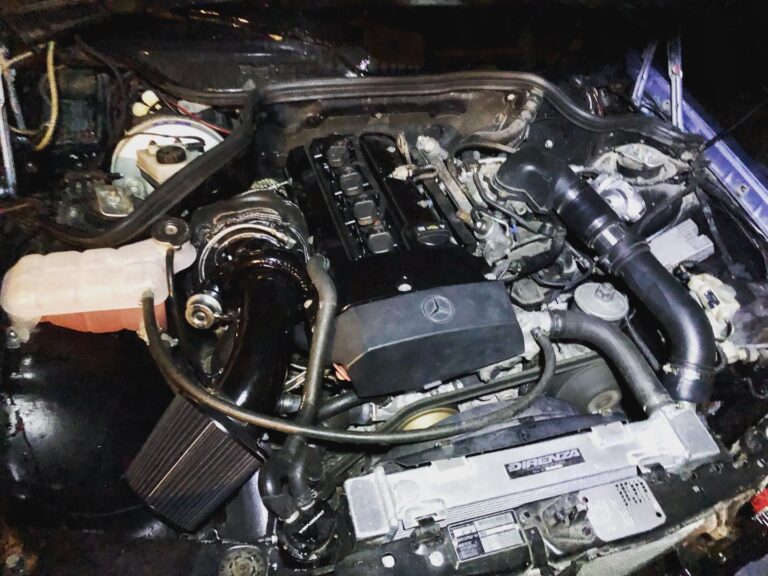

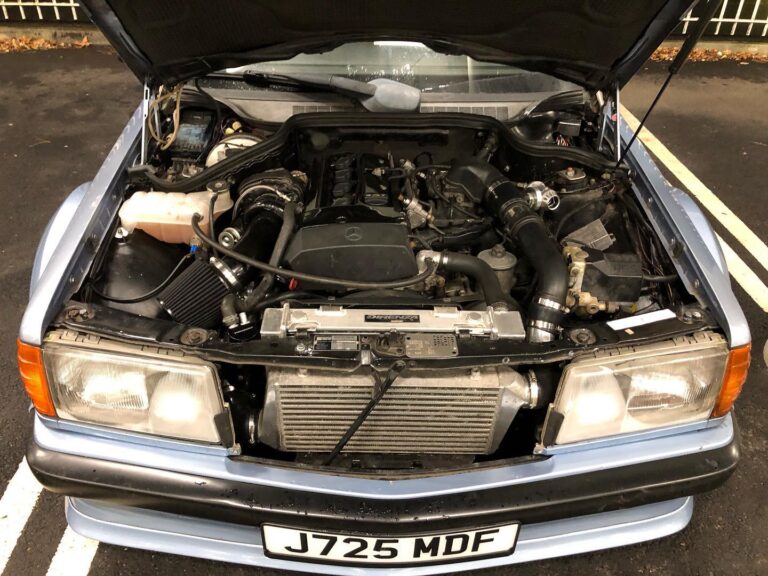

All systems are go! T2871 turbo 2.5” exhaust Not rushing mainly because it rains every day 🙈 #190e #W201 #M111
First tests #190e2316 #190evo #190cosworth #atecmotorenbau

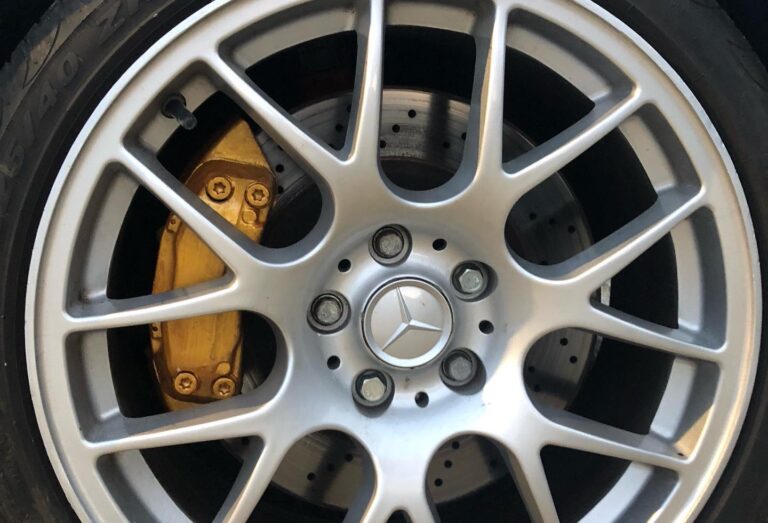

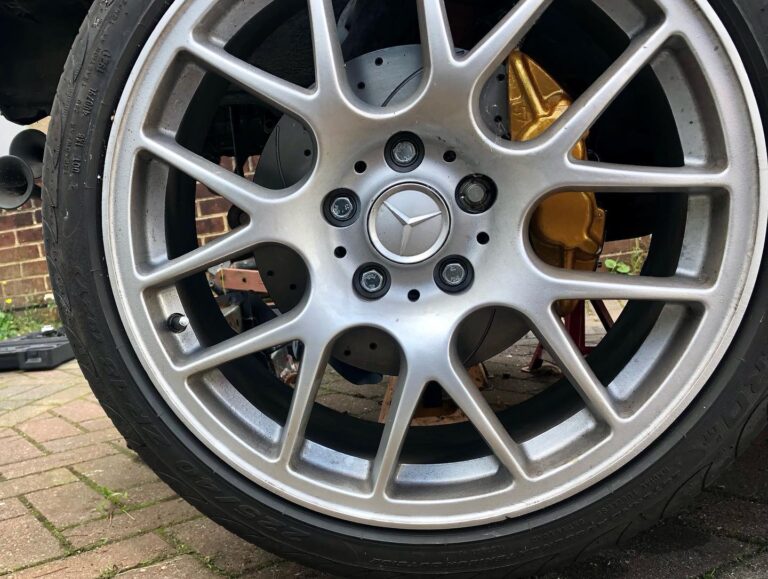

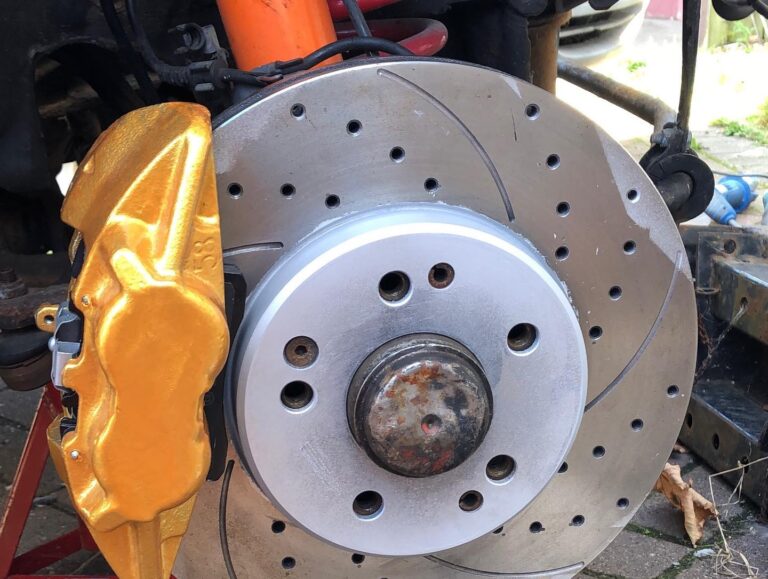

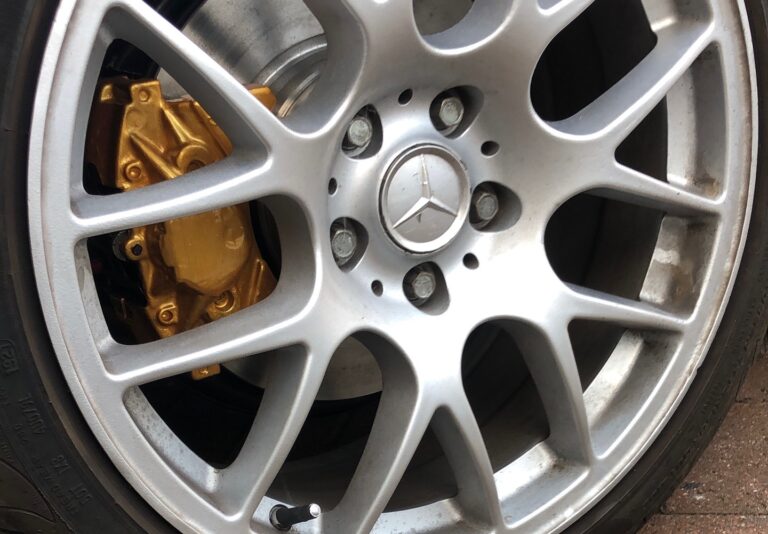

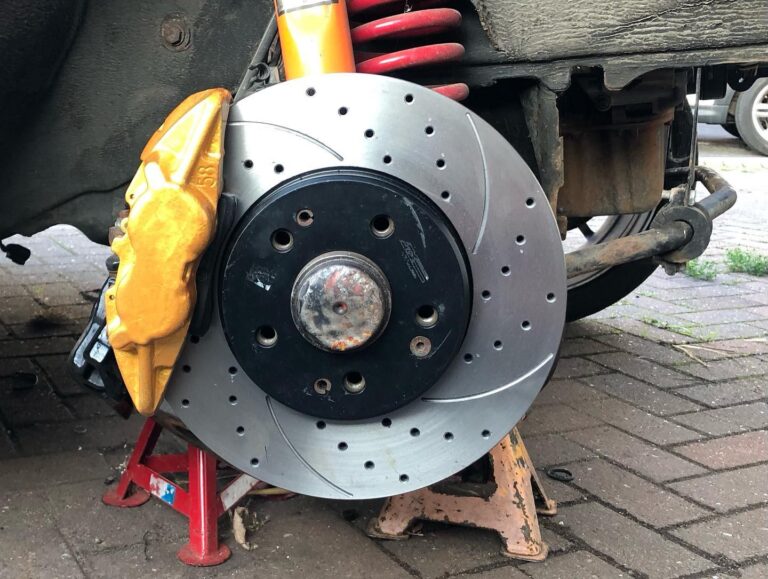

W124 Brakes added, cheapest method and bolt on with 300mm disc (had to shave the guard). With the 18” wheels it doesnt look much 😐 still a good upgrade

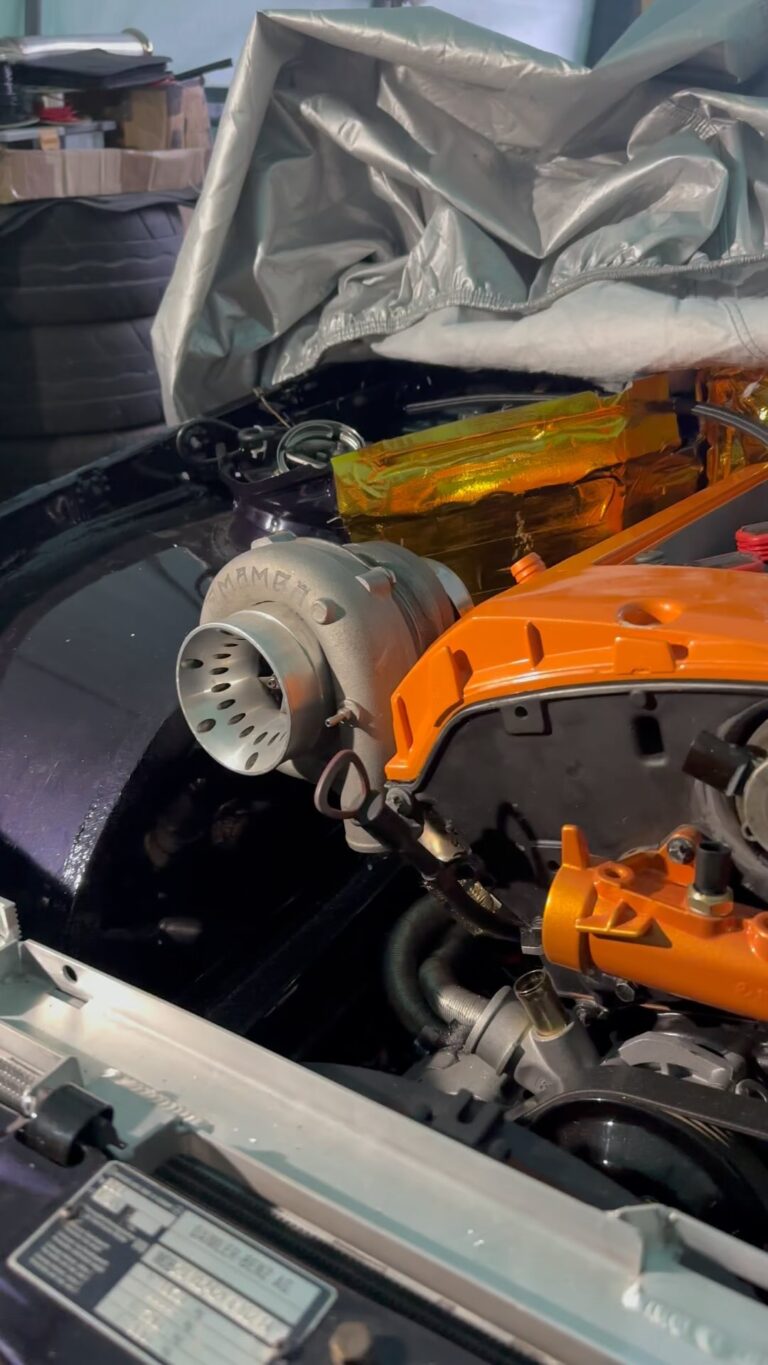

TURBO TIME in July 😎 noisy supercharger pffffffff 🤨 #M111 #190E #Evo1

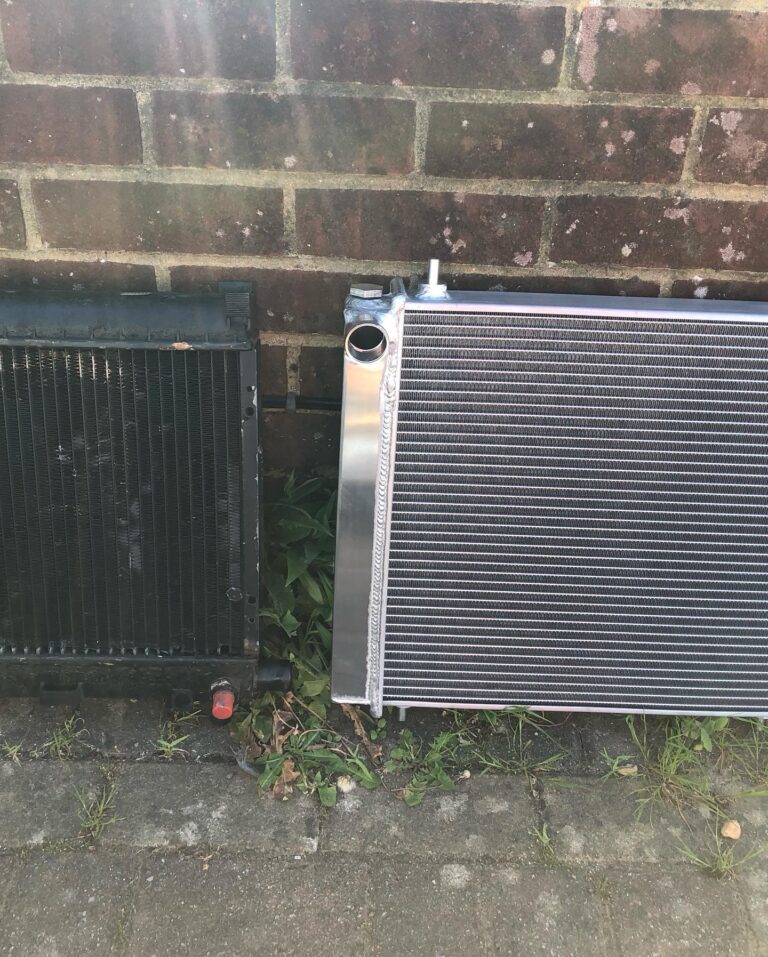

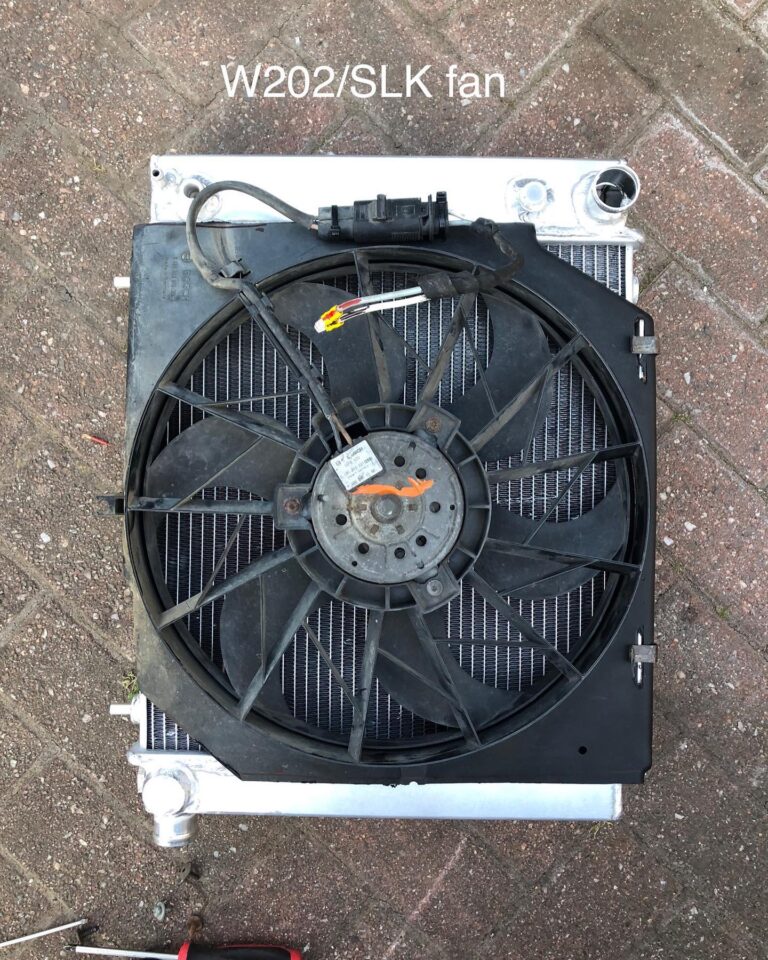

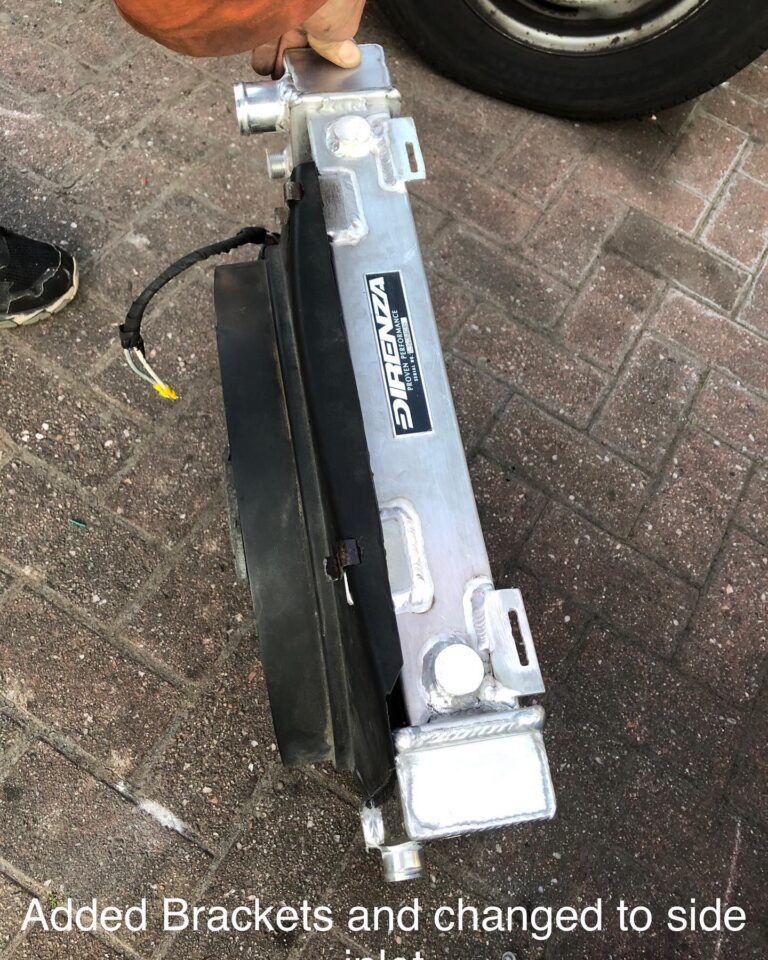

May have been a bit optimistic with the original radiator 😂 did have a cheap electric fan on it though 🙃. Bit better now. Moved the new inlet to the side as was welding on brackets anyway but you dont have to. The 190E mounts are cut and moved to the new position (wider pitch) PS get the fan control module a0185459932 if you do this.
Not many miles but the longest journey! #190e #evo1 #w201 #m111 #modified_mercs
Ready for my rewards 🫠😎
Probably the first 6speed 190e in the UK 5yrs ago and for a reason! Custom work aint much fun 😆 #190e

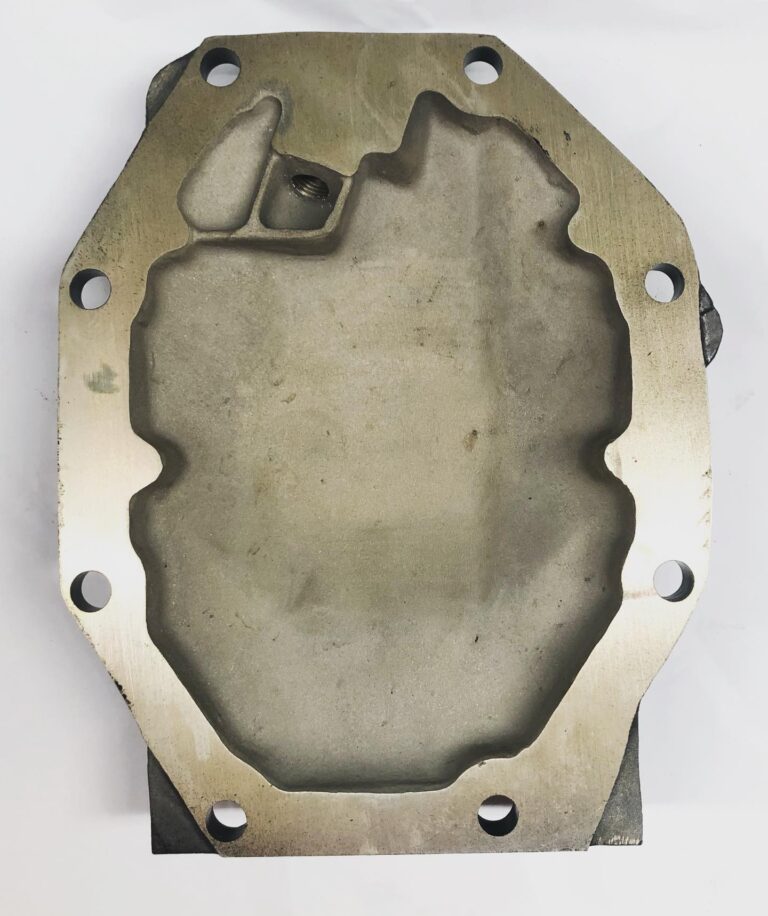

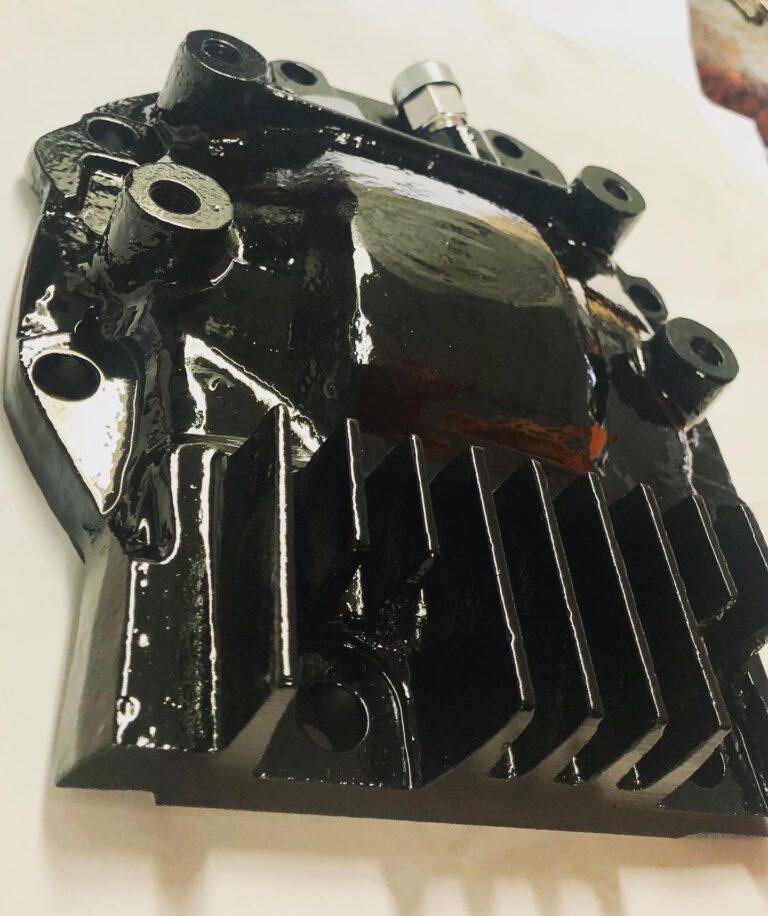

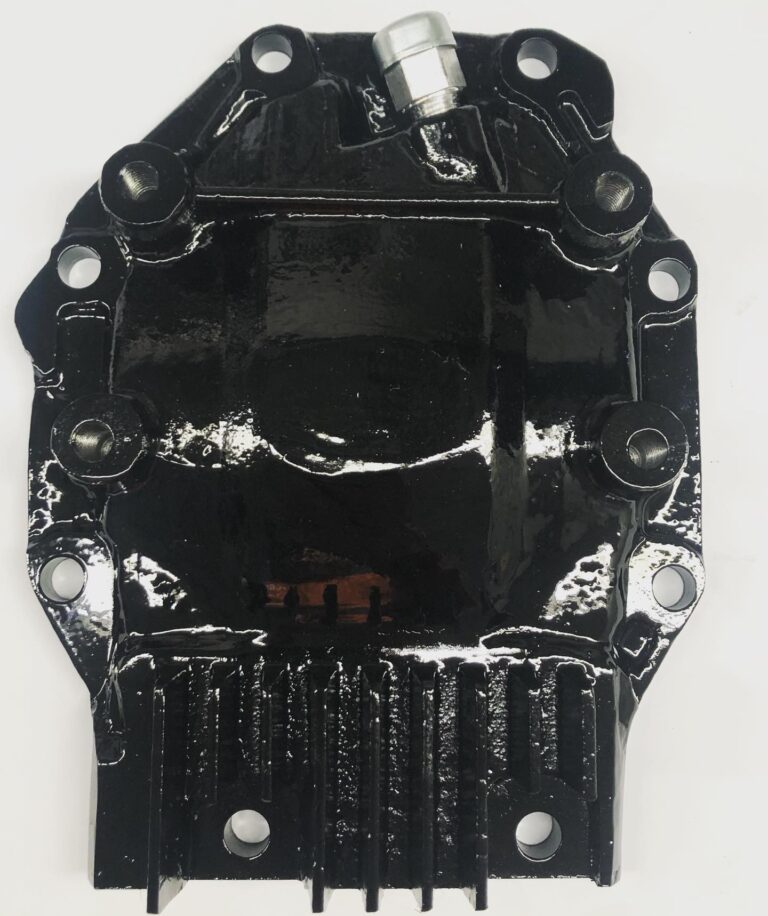

Final version of the 185mm 190E differential plate #differential #W201 #190E

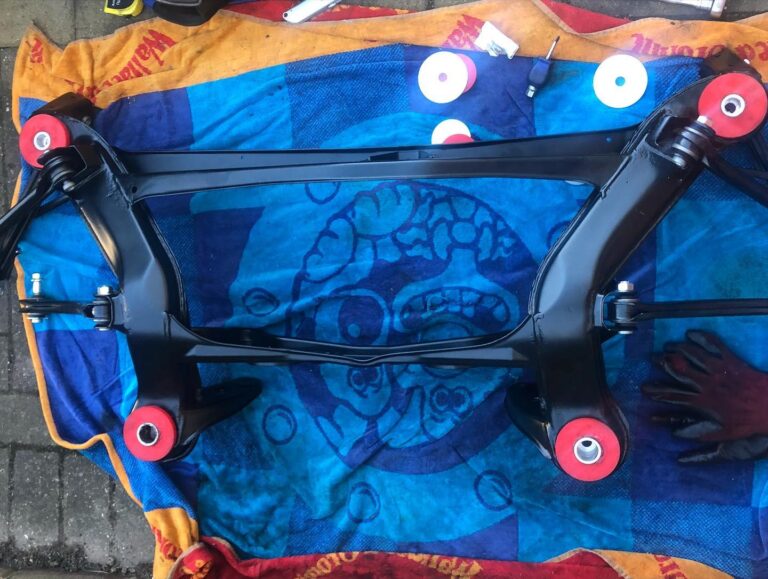

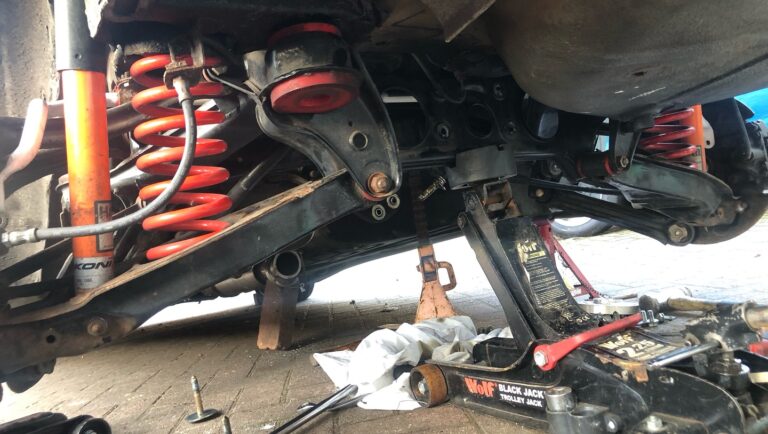

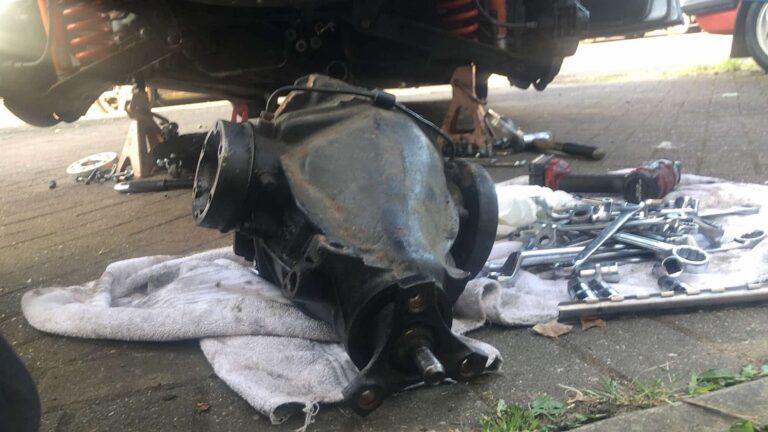

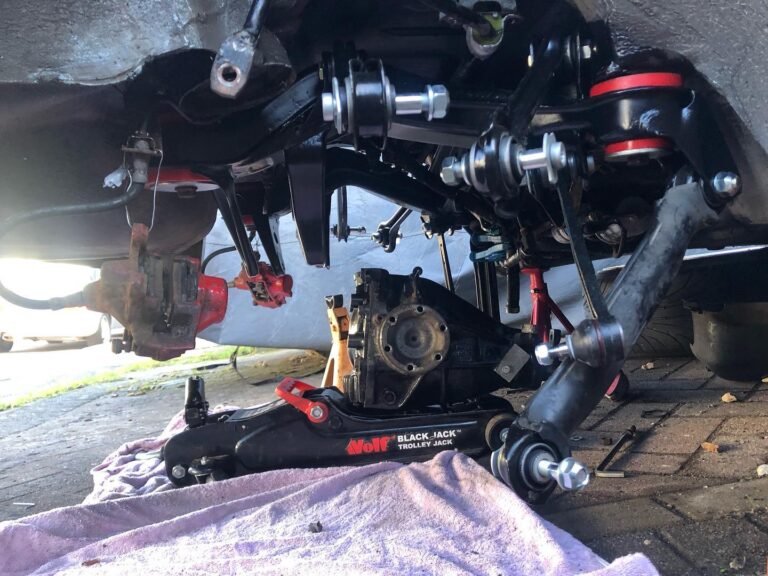

185mm ASD. Phosphate washed, zinc primed and powdercoated subframe with strongflex poly bushes. That Knuckle rose joint was a total 🤬 to swap. The lower arm bushes were easy, heat up and they fly across the room on fire 🤣 #190E #differential
